Michigan City, Indiana

While West Michigan is our home, we love to travel outside of the area for work. This large residential home located on the water is a site to behold and required multiple days of setting and pouring to complete. A project of this size, and this far away from our home location, required careful planning and communication.

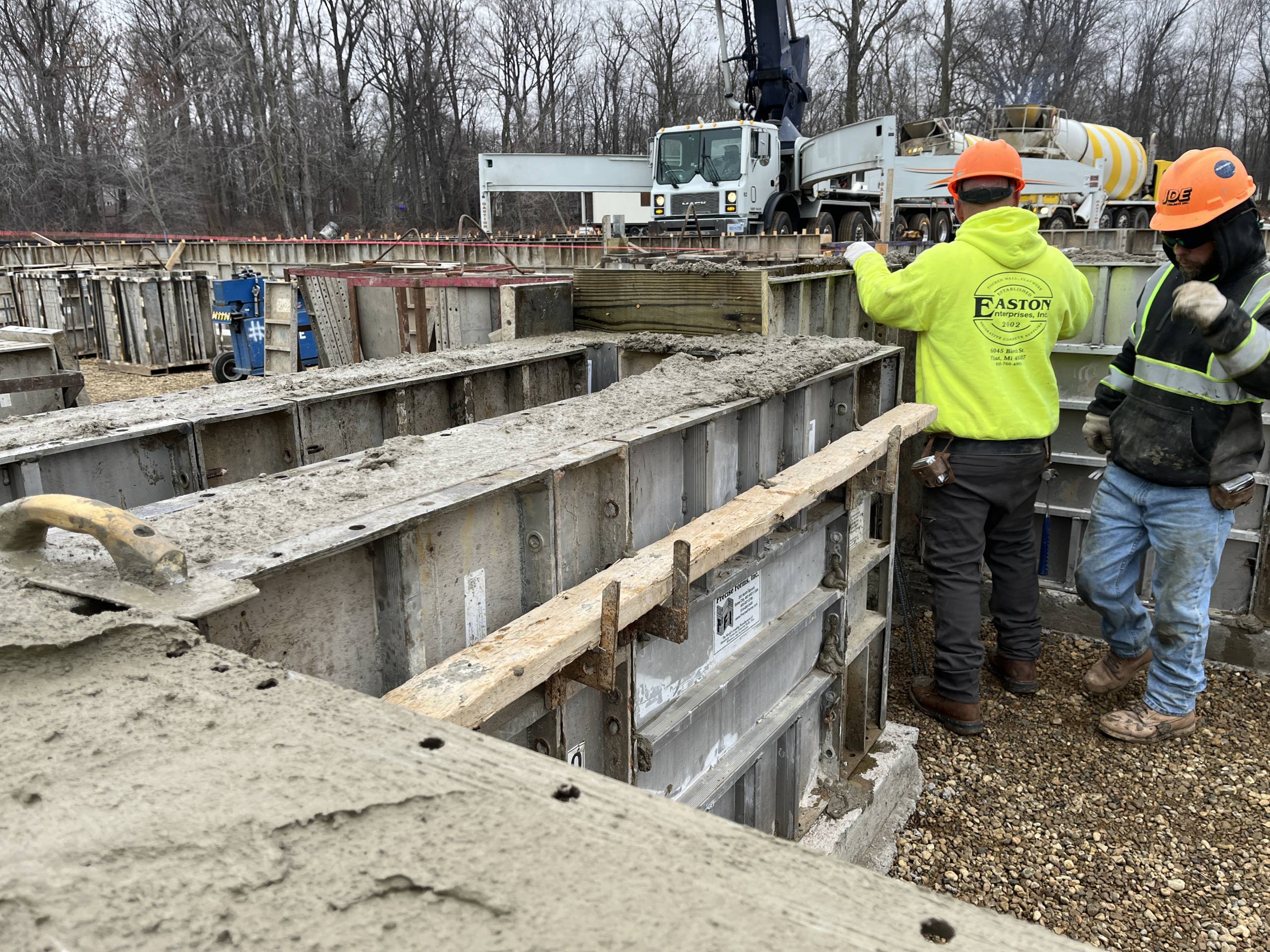

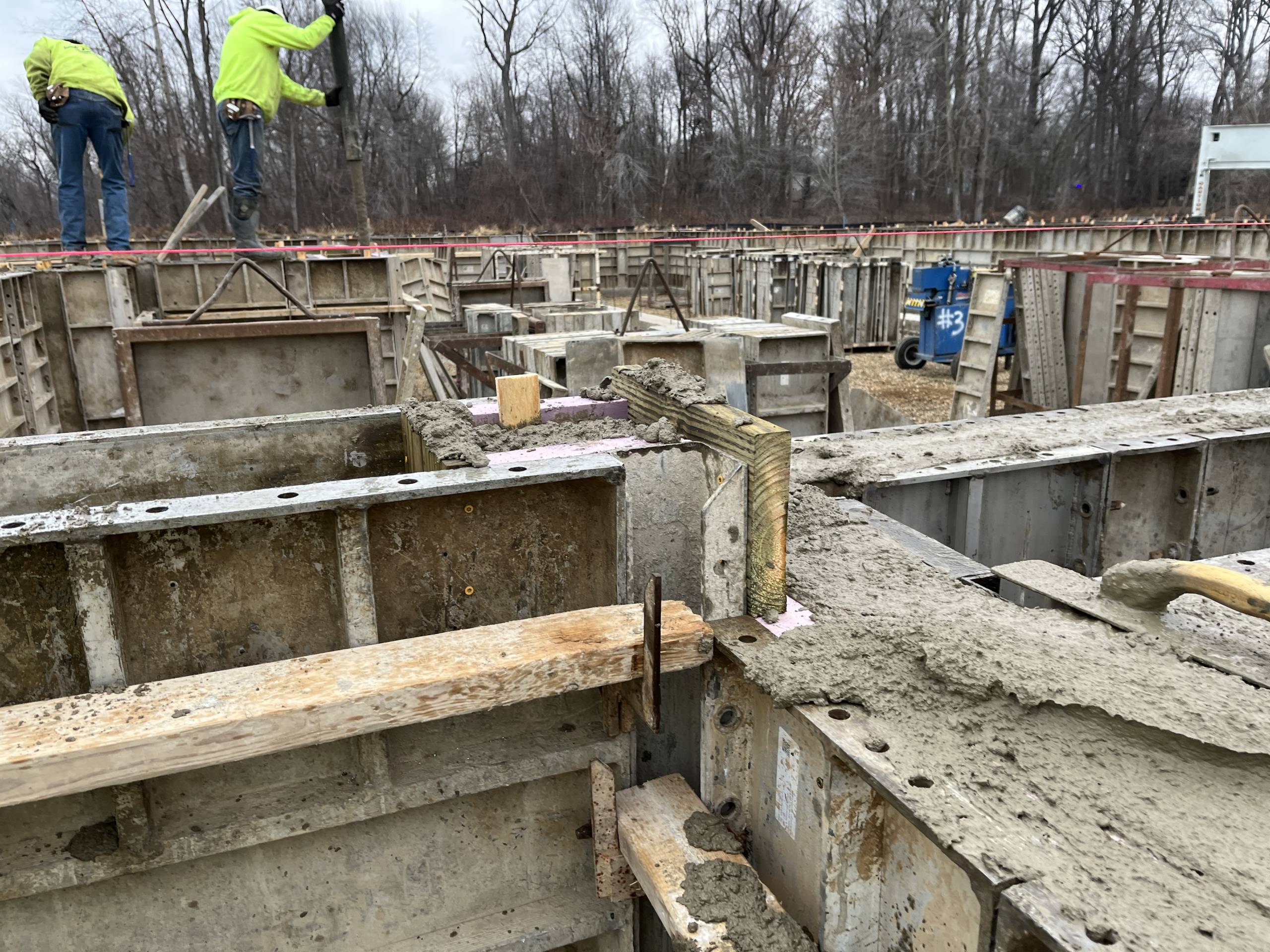

1,500 lineal feet of footing and wall and over 200 yards of concrete were used to complete this foundation.
JDE Concrete Pumping provided a 43 meter pump truck to ensure that all areas of the wall could be reached.

For the boom pump’s detailed specifications, Scroll Down.

Dcim100mediadji 0797.jpg

Dcim100mediadji 0816.jpg

A29b78177932d2e8bbae43497c5dbd26

7f081e7cb5e6ecbdef2ef8f32eb658c7

Acfc52c40765e15a8684668045b328f2

A539ce6804639b7078694e4255aa18e8

Let’s dive into the details of the 43-Meter RZ-Fold Boom Pump provided by JDE Concrete Pumping:

Vertical Reach

42.5 meters (139’5″)

Horizontal Reach

38.5 meters (126’4″)

Unfolding Height

8.8 meters (28’10″)

Boom Sections

1st Section Length: 8.4 meters (27’7″)
2nd Section Length: 7.0 meters (22’9″)
3rd Section Length: 6.9 meters (22’8″)
4th Section Length: 7.9 meters (25’11″)
5th Section Length: 8.3 meters (27’3″)

Outrigger Spread

Front (X-Style): 7.6 meters (24’11″)
Rear: 8.8 meters (28’10″)

Output

Rod Side: 164 m³/h (215 yd³/h)
Piston Side: 102 m³/h (133 yd³/h)

Pressure

Rod Side: 72 Bar (1044 psi)
Piston Side: 115* Bar (1668psi)

Concrete Cylinder Diameter

230 mm (9″)

Hydraulic System Pressure

350 bar (5076 psi)

Main Oil Pump

Rexroth Hydromatic A11VLO260

S-tube Size

8″ x 7″

Weight

Approximately 92,000 lbs

Water Tank

800 liters (211 gallons)

This 43-meter boom pump offers versatility, allowing you to operate efficiently even in tight spaces. The Z-Fold design ensures optimum flexibility, and the lower unfolding height makes it suitable for various job sites. Whether you’re working under low ceiling heights or in congested areas, this pump delivers.
